47mm scaffold tube sign clip
£4.75
You save (%)

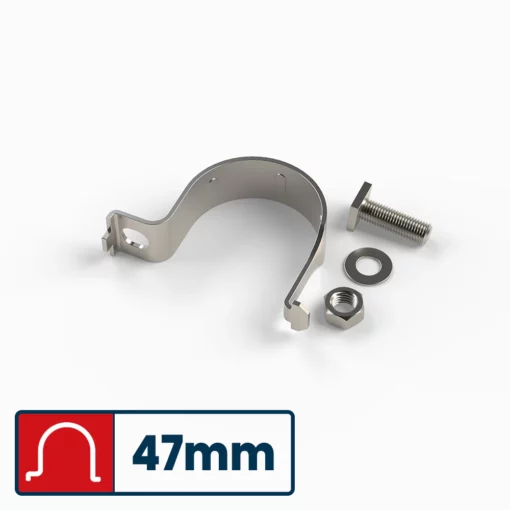

47mm Diameter Sign Post Clip – Anti-Rotational D Clip
Fast, simple sign installations onto UK standard scaffold tubes are achieved with this simple clip
This sign post clip has been designed to attach signs with channel to upright or horizontal scaffold tubes that have a 47mm diameter.
Key features
- Fixes signs to 47mm dia tubes
- Manufactured from high grade AISI 304 stainless steel
- Notch’s in the clip prevent sign rotation
- Precise sizing for secure hold
- Suitable for all sign channel profiles (small, medium & large)
- M8 x 32mm Square head bolts, nuts & washers included

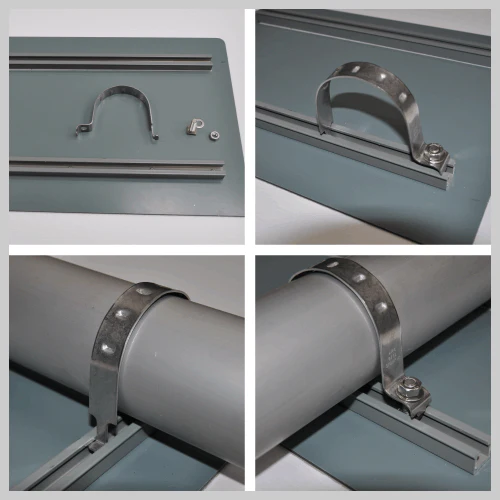

Our anti-rotational sign post clips have been designed for use with any ACM or solid aluminium sign blank that has small, medium or large aluminium sign channel bonded to the back of the sign.
The 47mm post clips come with square head bolts, washers and nuts to allow fast and efficient sign installation to any sign plate fitted with square slot sign channel (sign rail).
How many sign clips do I need to attach it to a post?
Most small to medium signs will need 2 clips to be installed onto a single sign post. However for larger signs that span over more than one post you will need a clip for each channel x the amount of posts. it is mounted on. e.g Sign has 3 Rails and is being installed over 3 posts : 3 x 3 = 9 clips needed
What type of sign can a sign clip be used with?
Sign fixing clips, also known as D clips or anti-rotational clips are suitable for signs that have aluminium sign channel bonded or rivetted to the rear of the sign. The simple but effective sign channel and clip combination offers a strong and secure fixing to posts and
| Dimensions | 47 × 47 mm |
|---|
